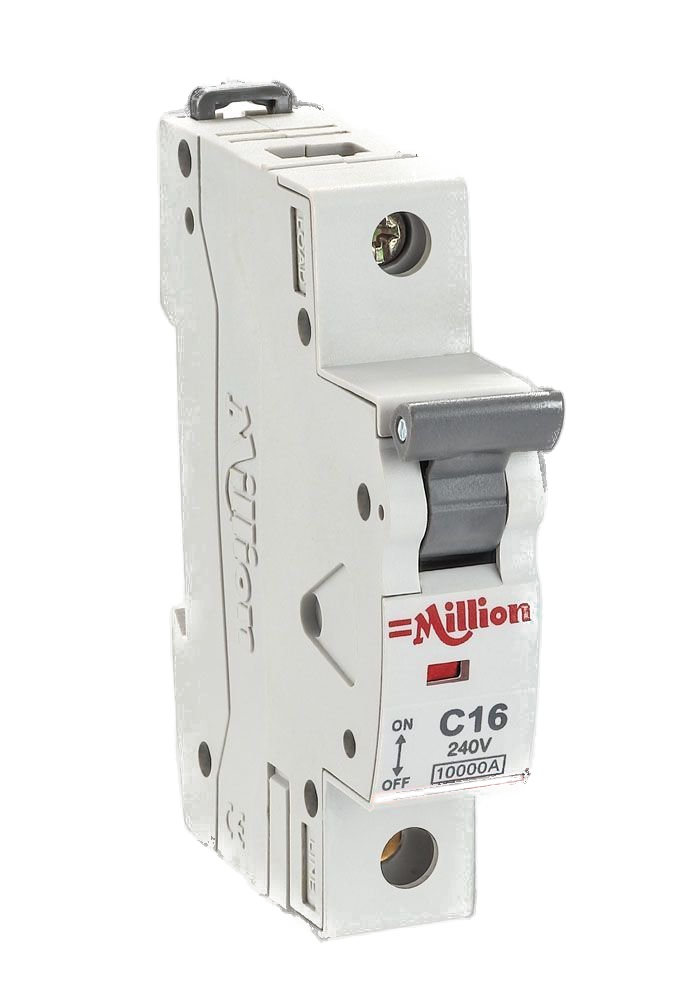

Miniature Circuit Breaker

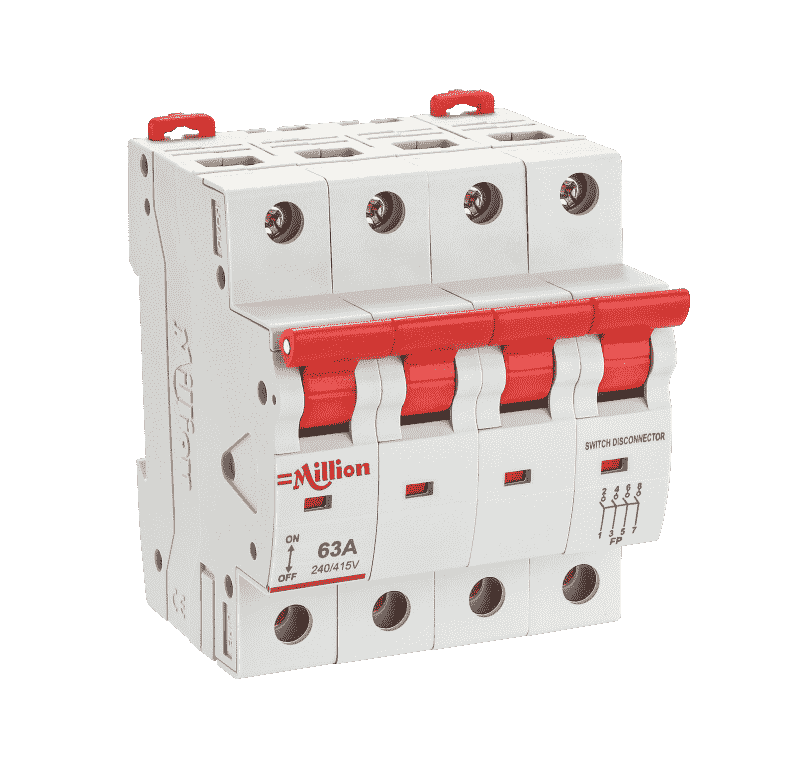

Switch Disconnector Isolator MCB Type

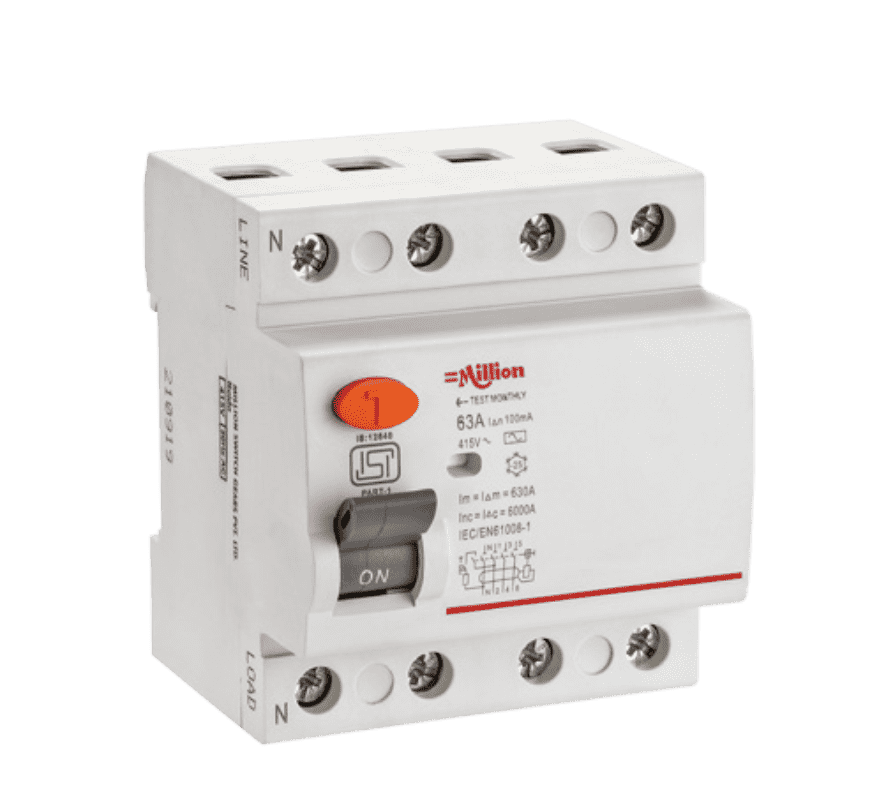

Residual Current Circuit Breaker

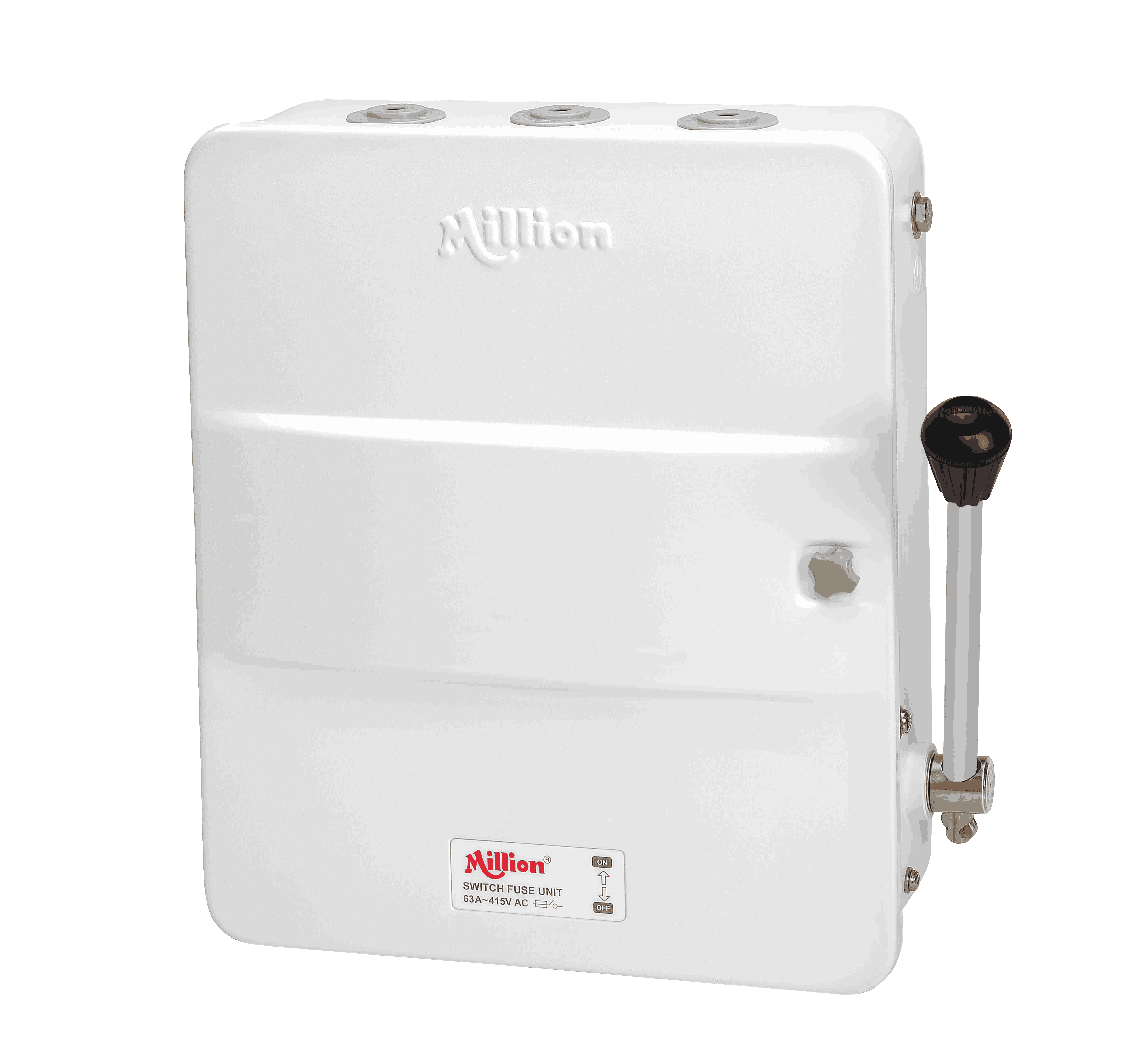

Switch Fuse and Combination Fuse

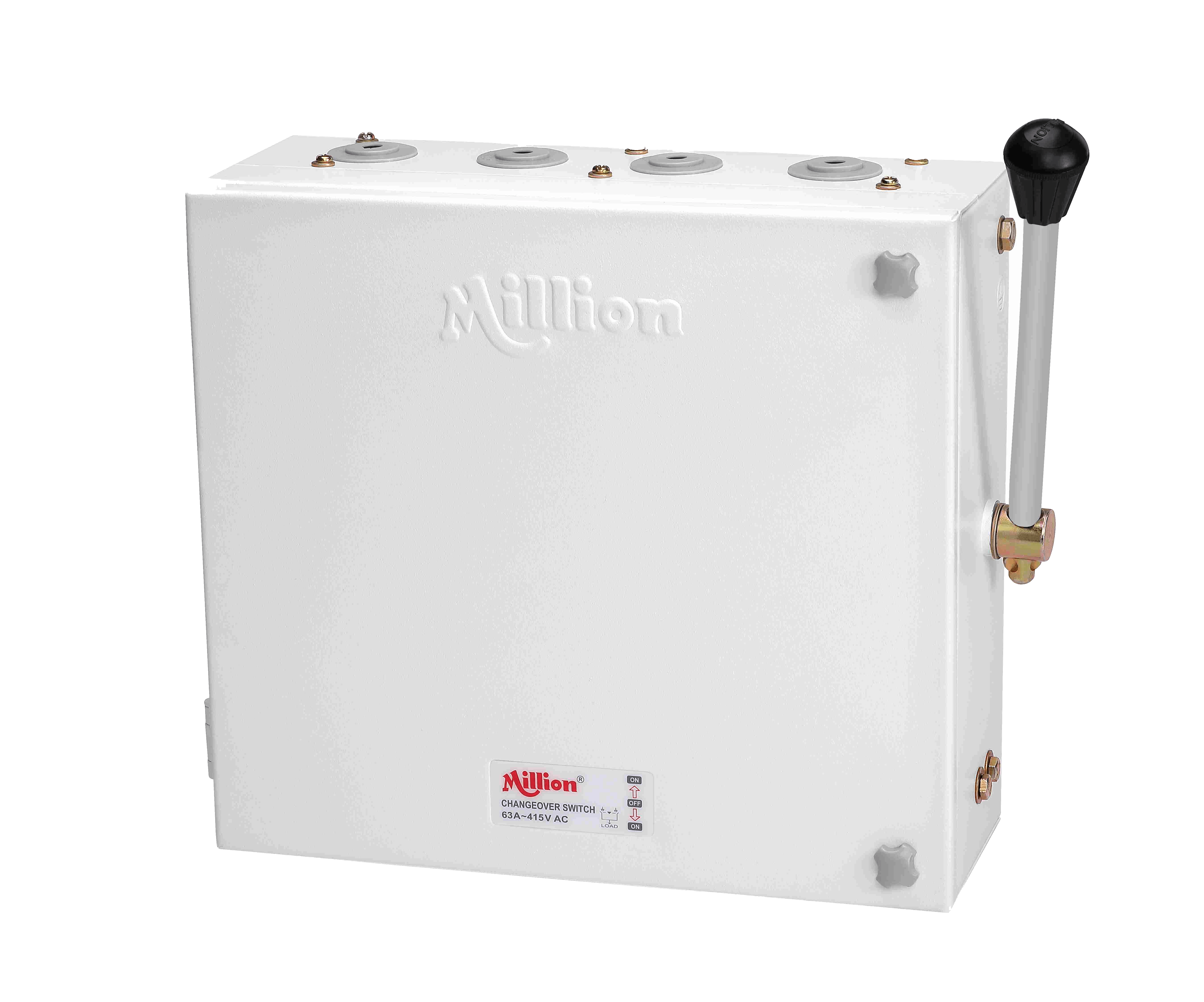

On/Off Load Change Over Switches

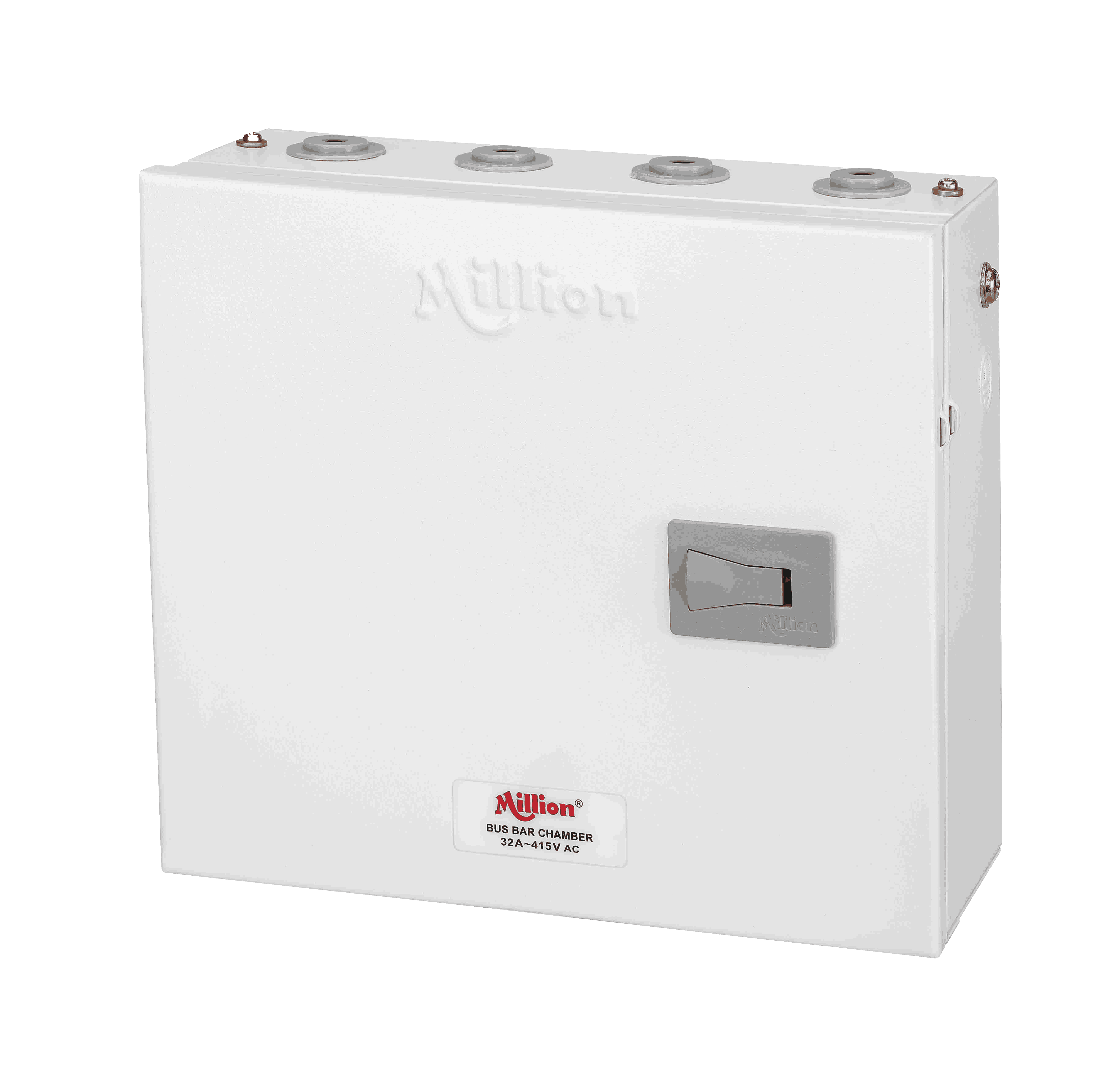

Busbar Chambers

Reverse and Forward Switch (R&F)

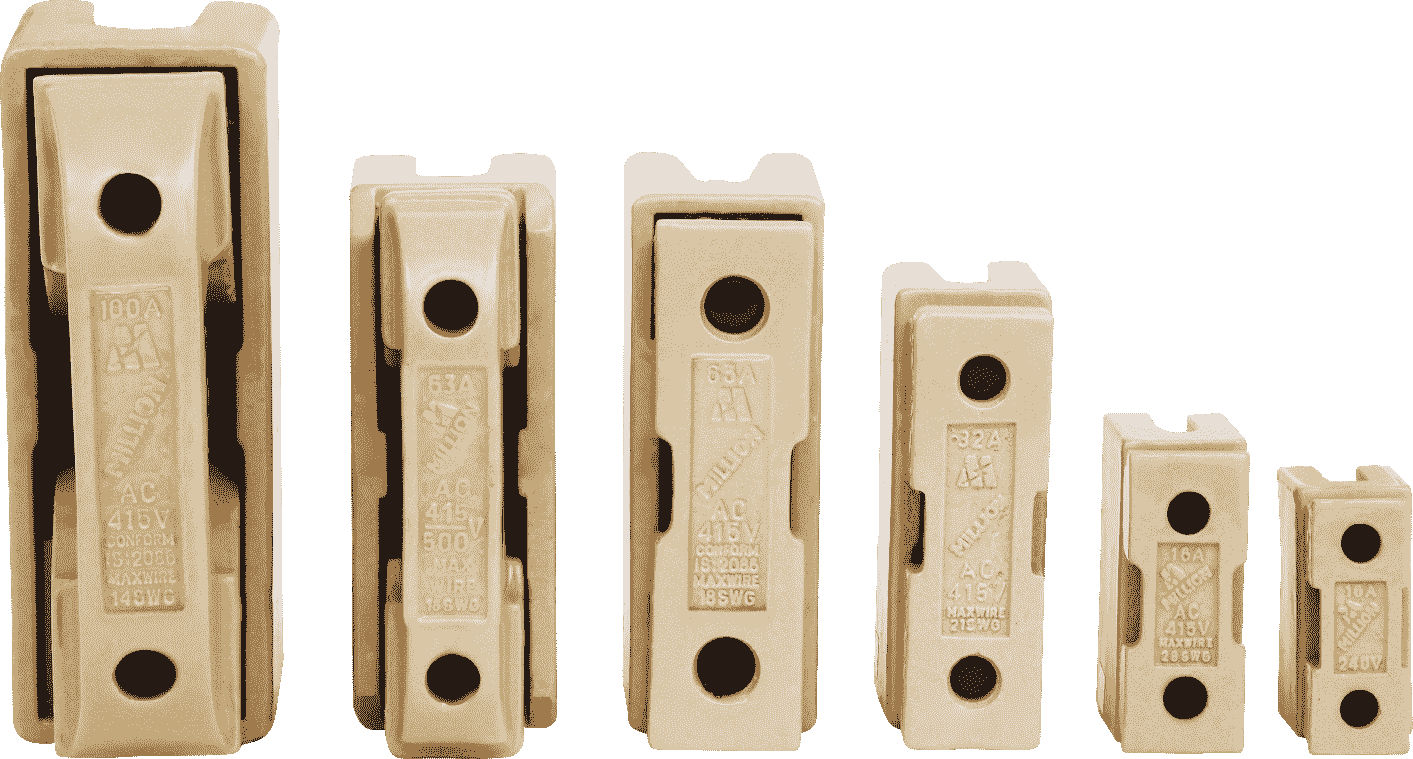

Kit Kat Fuse Units

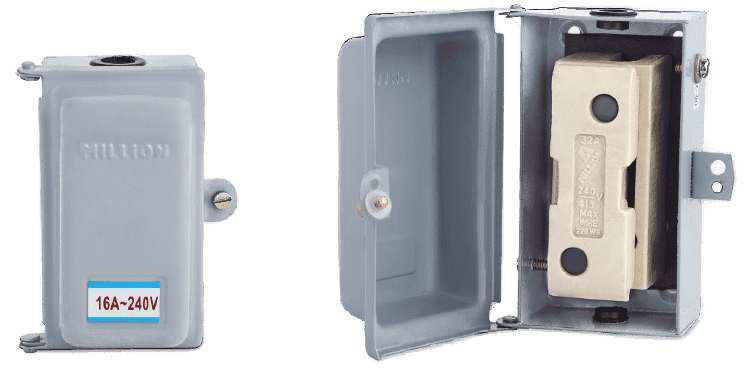

Sheet Metal Cutouts

Distribution Boards

Dual protection.
Rigid Metallic Din-rail fitment through easy snap on.
Ideal for commercial and residential sectors.
Confirms to ‘B’ & ‘C’ curves.
Conveniently mounted on any of the standard distribution boards along with contactor, RCCB, Timer, Relay etc.
Trip free self lubricating mechanism.
Low-watt loss.
Finger touch and shock proof.
Current limiting.

Certified as per IS/IEC 60898 and entire range 0.5A to 63A SP, SPN, DP, TP, TPN and FP ISI mark.
Silver inlay contacts with self wiping action.
Individual unit sealing arrangement.
Quick Quenching of Arc through specially designed Arc chutes.
Fire Retardant glass filled Engg. PBT.
Non corresive Engg plastic sleeves for multipoles.
Line & Load terminal marked.

Certified as per IS/IEC 60947 Entire range DP & FP 40A, 63A.
Finger touch & shock proof.
Conveniently mounted on any standard distribution board along with MCB, RCCB & Contactor etc.
Non corresive Engg plastic sleeves.
Line Load terminal marked.

Feature	DP	FP
Rated Voltage	240V A.C, 50 Hz	240V / 415V A.C., 50H
Current Ratings	16A, 25A, 32A, 40A, 63A, 100A	25A, 32A, 40A, 63A,100A
Sensitivities	30mA,100mA, 300mA	30mA, 100mA, 300mA
Configuration	2 Pole	4 Pole
Specification	IS:12640 (Part-1) : 2008	IS:12640 (Part-1) : 2008
Tripping Time	Less than 2 milli Sec.	Less than 2 milli Sec
Terminal Capacity	Rigid 35sq.mm Copper Flexible 25sq.mm Copper	Rigid 35sq.mm Copper Flexible 25sq.mm Copper
Electrical Life	>10,000 Operations	>10,000 Operations
Mechanical Life	>20,000 Operations	>20,000 Operations
Ambient Temp.Range	-5 to 40 C	-5 to 40 C
Resistance to Shock	20g/20ms	20g/20ms
Vibration Resistance	3g min	3g min
Degree of Protection	IP20	IP20
Termination of Busbar and cable simultaneously on incoming side	Dual termination possible	Dual termination possible
